Vega Smart 2HD
Next generation Tattile ITS systems pushes limits from ANPR to true vehicle identification
Color version available
The state of the art, Vega Smart 2HD has been specifically conceived to cover with outstanding performances all the requirements in free flow tolling, traffic monitoring and security. The system is able to cover two lanes at 7.5 meters width maximum and detects vehicles at a speed of up to 250 km/h.
Thanks to the revolutionary open architecture and thanks to the extra CPU capacity, Vega Smart 2HD is much more than an ANPR (ALPR) camera as additional functionalities can be added (also in a second moment) in order to allow vehicle color, brand and model recognition; furthermore, on top of the ANPR (ALPR) functionality, an HD streaming for video surveillance can be implemented as well, optimizing space and costs.

Applications
-
- Toll collection
- Free Flow
- Traffic monitoring
- Security
Next generation Tattile ITS systems pushes limits from ANPR (ALPR) to true vehicle identification
With the growing abilities of vision systems and the trend towards embedded systems demands have raised for tolling, free-flow, and speeding or red-light control applications. ITS-users increasingly ask for the ability to introduce a higher level of intelligence into previously dumb IP cameras, to provide wireless camera control, and to offer additional functionalities with easy access and installation. Tattile has taken up these latest breakthroughs in machine vision technology and designed and developed entirely from the ground the new Tattile Vega Smart range of camera systems. These new ITS camera systems go beyond pure automatic number plate recognition and offer functions as well as a level of integration which cannot be found elsewhere on the market. The cameras are a genuinely next-generation product line that makes the step from an ANPR (ALPR) system to a full vehicle identification system.
Integral part of the new product line is the Vega Smart 2HD, a camera specifically designed to the requirements in free flow toll collection, traffic monitoring and security. The system is able to cover two lanes at 7.5 meters width maximum and detects vehicles at a speed of up to 250 km/h. Additional standard functionalities include embedded ANPR (ALPR), monochrome vehicle images and color context vehicles images, and an optical speed evaluation as well as the capability to read reflective and non-reflective license plates. An extra sensitive sensor mounted on the Vega Smart 2HD’s context camera ensures quality images also in low light conditions. The modular system architecture allows an easy customization of the hardware platform according to complexity of each given application.
These standard features are complemented by optional functionalities which transform the camera from a standard plate reader into a true smart vehicles recognition and a security system. Firstly, a system can be added to recognize the vehicle brand, vehicle class and even the vehicle color and additionally offer HD Streaming for video surveillance. In addition, the Smart camera can be equipped to simultaneously run two different OCRs on-board. The Real-time licence plate identification is then performed by two independent software tools inside the system that provide a maximum accuracy. Through this Double OCR the validated licence plate data is a direct output from the camera and any additional third party analysis software is redundant which reduces complexity and system costs for the user.
On top of that, Tattile offers the first of its kind smartphone and/or tablet App for remote camera configuration. Through the Easinstall App not only the Install pack can be uploaded to the camera via remote connection but all optional camera functionalities even when the system is already in operation.
The new Tattile Vega Smart 2HD ANPR (ALPR) system marks the next generation of highly scalable smart cameras. Its embedded intelligence provides a maximum output at extremely low system costs since all algorithms are inside the system and deliver an output ready to be interpreted by the user.
Software features and performances | ||
---|---|---|
VEGA SMART HD | VEGA SMART 2HD | |
Lane Detected | 2 | |
Max Vehicle Speed | 250 km/h - 155 mph | |
Working Distance | Up to 35 m - Up to 115 ft | |
Detection | 99% | |
Reading | >95% | |
OCR | ANPR (ALPR) engine on board | |
2nd Lever OCR | optional | |
Capture Rate | Up to 75 fps | |
Classification | optional | |
Vehicle Color | NA | optional |
Vehicle Brand | optional | |
Vehicle Model | optional | |
AES256 | Yes | |
SHA2 | Yes | |
Compression | JPG | |
Streaming | NA | Video streaming via standard RTSP protocol |
CONFIGURATION | ||
Web Server | Installation and configuration by Web Server on board | |
TCP/IP Server | Configuration and monitoring through TCP/IP protocol (SDK provided) | |
Date and Hour | Synchronization via NTP protocol, IEEE1588, GPS | |
Software Update | Upgrading via Web Interface and SDK | |
DATA TRANSMISSION | ||
FTP | FTP Client to FTP Server mode for remote data transmission; Multiple IP servers addressable | |
TCP/IP | Tattile TCP/IP open protocol; (SDK provided) | |
Standard protocols | XML; SNMP; NTCIP; DATEX2; UTMC; ONVIF; MODBUS | |
Serial Port | Insulated RS485 | |
OPERATING MODE | ||
Free Run | Continuous processing with automatic vehicle detection, even without plate | |
Triggered | Image capture and processing triggered by Ethernet command or digital signal |
Technical features | ||
---|---|---|
VEGA SMART HD | VEGA SMART 2HD | |
SYSTEM | ||
ANPR camera | 5 MPX BW 5 MPx Color (color version) |
|
Context camera | NA | 2.3 Megapixel color CMOS sensor |
Illuminator | 12 high power LEDs | |
Lenses | C-Mount. Many focal lengths available | |
Operating System | Linux Operating System | |
Digital i/o | 6 Optoisolated input - 4 Relay Output – 1 Strobe output | |
Connectors | Waterproof circular connector | |
IP Protection | Waterproof IP68 | |
Ethernet | GigaBit Ethernet 10/100/1000 | |
Storage | uSD up to 128 GB HD/SSD up to 1 TB |
|
GPS | Optional | |
LTE | Optional | |
WiFi (Easinstall) | Yes | |
ENVIRONMENT, SIZE, POWER | ||
Operating & Storage Temperature | From -40° to +60° C - From -40° to +140° F | |
Operating & Storage Humidity | Up to 95% non condensing | |

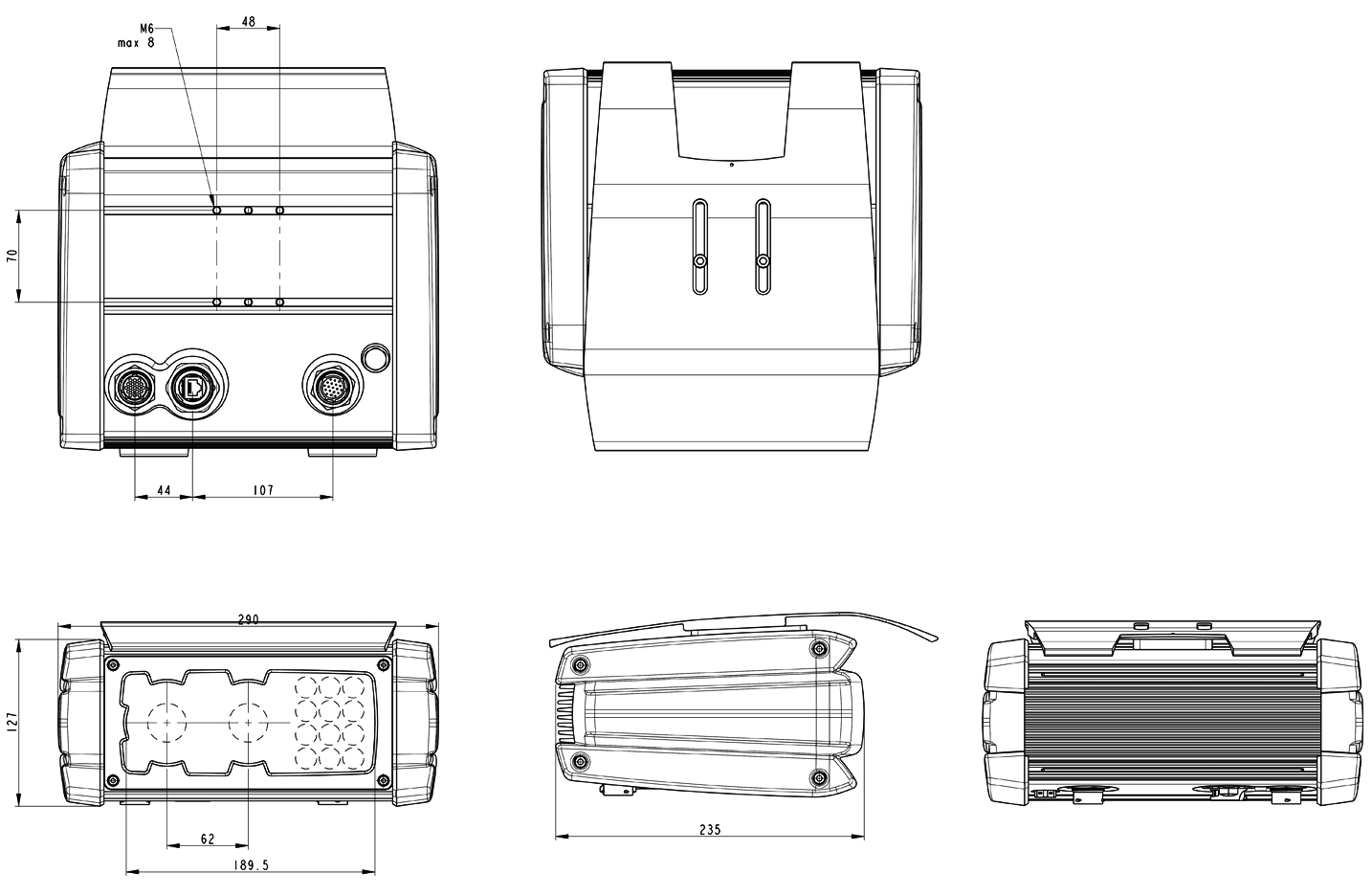

Dimensions | 290 x 127 x 235 mm - 11.4 x 5 x 9.25 in (WxHxL) | |
Weight | 5.5 kg - 12.12 lbs | |
Power supply voltage | 24 Vdc | |
Power consumption | 50 W (max) |
Included Features and Optionals | ||||
---|---|---|---|---|
VEGA SMART HD -Color | VEGA SMART 2HD -Color | |||
INCLUDED | OPTIONAL | INCLUDED | OPTIONAL | |
Double Processor | X | X | ||
FPGA | X | X | ||
OCR 5Mp Sensor | X | X | ||
Color Sensor | X | |||
Micro Sd | X | X | ||
Embedded Illuminator | X | X | ||
Radar | ||||
GPS | X | X | ||
LTE | X | X | ||
SSD | X | X | ||
Linux Os | X | X | ||
Traffic Light Violation Sw | ||||
Rigel Traffic Analysis | X | |||
OCR | X | X | ||
Autoiris | X | X | ||
Easinstall App | X | X | ||
Brand Recognition | X | X | ||
Color Recognition | X | X | ||
Model Recognition | X | X | ||
Optical Classification | X | X | ||
Second Level OCR | X | X | ||
Speed Estimation | X | X | ||
HD Video | X |
F01760 | VEGA SMART HD |
F01761 | VEGA SMART 2HD |
F01762 | VEGA SMART HD COLOR |
F01765 | VEGA SMART 2HD COLOR |
F01767 | VEGA SMART HD NRP |
F01768 | VEGA SMART 2HD NRP |
