ANPR Mobile Camera
Tattile ANPR Mobile is the smart solution to prevent crime, offered as an aid to Police Forces.
It is an evolved and modern license plate reading system, installed on the cars of specialized operational departments and/or intelligence services, as a support to surveillance and protection, serving as a tireless watchful eye on the road. ANPR Mobile is a latest generation system with Megapixel sensors that can scan up to one hundred license plates per second, front and rear, in any light condition. It is part of the sophisticated Tattile ANPR/ALPR (Automatic Number Plate Reader) All On Board camera family, to read license plates in movement.
- Police enforcement
- Crime prevention
- Embedded license plate analysis (Ocr onboard)
- All in one: monochrome and color sensors, IR illuminator
- Real time processing: up to 100 fps
- Color video streaming: H.264 & MPEG4
- Wi-fi data transmission from the unit to the pc/tablet
- Gps onboard
- Waterproof housing
- Web server configuration and setup.
- SD memory up to 128GB
Tattile ANPR Mobile is a latest generation All On Board system, designed to read license plates in movement. Thanks to its unique features is offered as an aid to Police Forces, to carry out check-ups and to prevent crime.
It is equipped with Megapixel sensors, able to scan over one hundred license plates per second, front and rear, in all light conditions.
It is part of the Tattile ANPR/ALPR (Automatic Number Plate Reader) devices, which combine multiple components in a compact solution, such as: sensor, infrared illuminator and processor with integrated OCR (Optical Character Recognition) to read automatically license plates.
The system does not require the installation of processing units on board of the cars, nor of physical connection between the cameras and the on board computer/ tablet. In fact, the license plates analysis is done directly from the cameras installed on the roof, bonnet or trunk of the car and the data transmission occurs in Wi-Fi mode. This way it is possible to speed up the installation, making ANPR Mobile easily transportable from a car to another, with a consequent costs reduction.
Tattile new solution is equipped with a sophisticated software that enables to capture images in both gray scale and color, with the best automatic selection of acquisition parameters with multiple auto exposure.
The control console runs on PCs, tablets, smartphones (Android based); enables you to receive data from multiple devices and display them as images, texts and to create white/black playlists.
We offer two ANPR Mobile versions:
– Short distance, for side reading, speed up to 50 km/h;
– Long distance, for front reading.
|LICENSE PLATE RECOGNITION|
|OCR||ANPR (ALPR) engine on board|
|Capture rate||Up to 60 fps|
|Web Server||Installation and configuration by Web Server on board|
|TCP/IP Server||Configuration and monitoring through TCP/IP protocol|
|Date and Hour||Synchronization via SNTP protocol or GPS|
|Software Update||Upgrading via Web Interface|
|FTP||FTP Client to FTP Server mode for remote data transmission; two IP address management|
|TCP/IP||Tattile TCP/IP open protocol; two IP address management|
|H.264/MPEG4||Color video streaming H.264 or MPEG4|
|Free Run||Continuous processing with automatic plate detection|
|ANPR (ALPR) camera||1920x1200 Monochrome CMOS sensor (cropped to 1280x1024 for the Short Range version)|
|Context camera||1920x1080 Color CMOS sensor (cropped to 1280x1024 for the Short Range version)|
|Illuminator||6 high power LEDs, InfraRed @ 850 nm (Short Range version)
10 high power LEDs, InfraRed @ 850 nm (Medium & Long Range version)
|Lenses||C-Mount. Many focal lengths available|
|Connectors||Waterproof circular connector|
|Network||Fast Ethernet 10/100 and WiFi 802.11 b/g/n|
|Storage||Up to 128 GB|
|ENVIRONMENT, SIZE, POWER|
|Operating & Storage|
|From -30° to +60° C / -22° to +140° F
|Operating & Storage|
|Up to 95% non condensing|

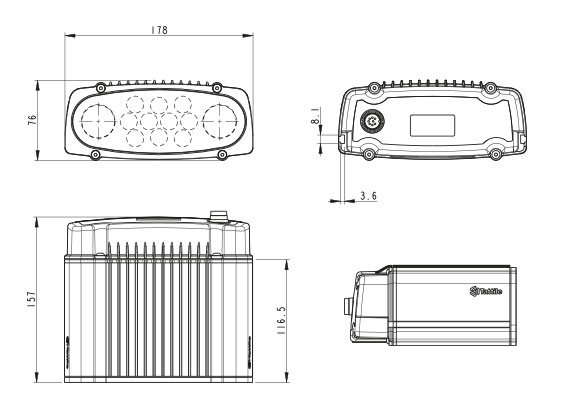

|Dimensions||178 x 76 x 141 mm - 7 x 3 x 5.5 in (WxHxL)|
|Weight||1,650 Kg - 3.63 lbs|
|Power supply voltage||12 Vdc|
|Power consumption||15 W|
|F01710||ANPR MOBILE SYSTEM||Short range|
|F01845||ANPR MOBILE SYSTEM||Medium range|
|F01696||ANPR MOBILE SYSTEM||Long range|
Please contact TRAFFIC@tattile.com to request the new firmware, specifying the current firmware version of your camera
