Vega1

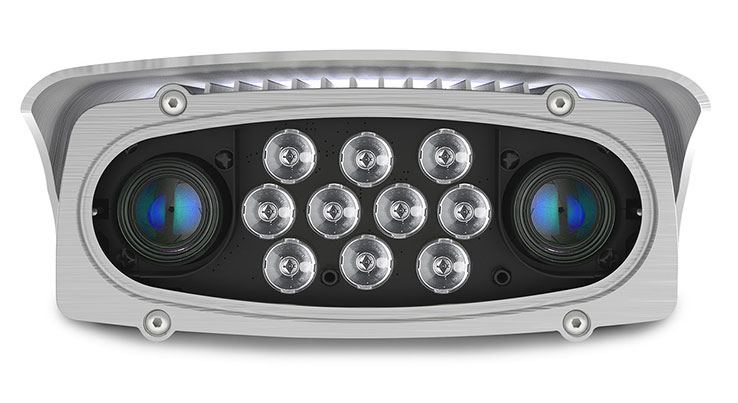

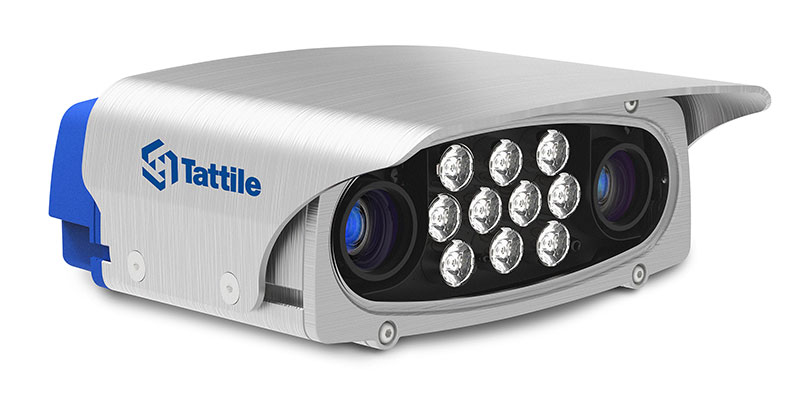

The Vega1 is a dual channel camera built in a compact case.


It is mainly targeted to single lane vehicle tracking, traffic limited areas and priority lanes.
Its high sensitivity image sensors are available for ANPR (ALPR) reading, video streaming even in extreme and low light conditions.
The camera allows an easy setup to minimize the installation and maintenance time. Thanks to its local storage can work stand alone in case the connectivity is not available.
Vega1 is compact, easy to install and does not require an external IR lighting. The extra compact case reduce installation impact.

Applications
- Single lane road tracking
- Surveillance and access control
- Congestion charge
- Limited traffic areas, priority lanes
• ANPR (ALPR) onboard
• Local storage
• Speed estimation
• Video streaming
Optional functionalities:
• GPS
• Wifi
• LTE
• Vehicle brand
• Vehicle class
• Vehicle color
• Vehicle model
Tattile introduces single lane vehicle identification system.
Italian ITS specialist Tattile expands its range of vehicle identification systems by the new Vega 1, an intelligent camera specifically designed for single lane vehicle tracking; traffic limited areas and priority lanes. Congestion charge is another possible field of application in the ITS sector where the new Tattile Vega 1 is a perfect fit.
The core of the new Tattile Vega 1 with an onboard ANPR engine is a dual channel camera built in a compact case. This extremely compact design and embedded intelligence provides a maximum output at extremely low system costs since all algorithms are inside the system and deliver an output ready to be interpreted by the user. The camera allows an easy setup to minimize the installation and maintenance time. Thanks to its local storage it can work stand alone in case the connectivity is interrupted.
The single lane intelligent traffic system provides color video streaming via standard RTSP protocol. Even with an impressive working distance up to 25 meters the Vega1 does not require an external IR lighting. Thanks to its high sensitivity image sensors ANPR reading and video streaming is possible even in harsh and low light conditions.
The standard features are complemented by several optional functionalities for the new Vega 1. They provide further information on the vehicles tracked by additional vehicle brand, vehicle class and vehicle color identification. As to connectivity there are options to connect the Vega 1 to Wifi, LTE and GPS. These additional features together with the standard functionalities turn the Vega 1 into a compact but powerful collector of all relevant data needed for vehicle identification and road control.
Software features and performances | |
---|---|
Lane Detected | 1 |
Max Vehicle Speed | 200 km/h - 124 mph |
Working Distance [m] | Up to 25 m - Up to 82 ft |
Detection | 99% |
Reading | >95% |
OCR | ANPR (ALPR) engine on board |
2nd Lever OCR | optional |
Capture rate | Up to 60 fps |
Classification | optional |
Vehicle Color | optional |
Vehicle Brand | optional |
Vehicle Model | optional |
AES256 | Yes |
SHA2 | Yes |
Compression | JPG |
Streaming | Color video streaming H.264 |
CONFIGURATION | |
Web Server | Installation and configuration with on board Web Server |
TCP/IP Server | Configuration and monitoring through TCP/IP protocol (SDK provided) |
Date and Hour | Synchronization via NTP protocol, IEEE1588, GPS |
Software Update | Upgrading via Web Interface and SDK |
DATA TRANSMISSION | |
FTP | FTP Client to FTP Server mode for remote data transmission; Multiple IP servers addressable |
TCP/IP | Tattile TCP/IP open protocol; (SDK provided) |
Standard protocols | XML; SNMP; NTCIP; DATEX2; UTMC; ONVIF; MODBUS |
Serial Port | Insulated RS485 |
OPERATING MODE | |
Free Run | Continuous processing mode |
Triggered | Image capture and processing triggered by Ethernet command or digital signal |
Technical features | |
---|---|
SYSTEM | |
ANPR camera | Up to 3 Megapixel grayscale sensor |
Context camera | Up to 3 Megapixel color sensor |
Illuminator | 10 high power LEDs, InfraRed @ 850 nm |
Lenses | C-Mount. Many focal lengths available |
Operating System | Linux Operating System |
Digital i/o | 2 Inputs - 2 Outputs – 1 Strobe output |
Connectors | Waterproof circular connector |
IP Protection | Waterproof IP67 |
Ethernet | GigaBit Ethernet 10/100/1000 |
Storage | uSD up to 128 GB |
GPS | Optional |
LTE | Optional |
ENVIRONMENT, SIZE, POWER | |
Operating & Storage Temperature | From -40° to +60° C - From -40° to +140° F |
Operating & Storage Humidity | Up to 95% non condensing |
Dimensions | 187 x 103,5 x 216 mm - 7.4 x 4.1 x 8.5 in (WxHxL) |
Weight | 5 kg - 11 lbs |
Power supply voltage | 24 Vdc or PoE+ 802.3at Type2 |
Power consumption | 15 W (max) |
Included Features and Optionals | ||
---|---|---|
INCLUDED | OPTIONAL | |
Multicore Processor | X | |
OCR Bw sensor | X | |
OCR Color sensor (color version) | ||
Context color sensor | X | |
Video streaming | X | |
Micro Sd | X | |
Linux OS | X | |
OCR | X | |
Autoiris | X | |
Easinstall App | X | |
Speed Estimation | X | |
Model Recognition | X | |
Class Recognition | X | |
Brand Recognition | X | |
Color Recognition | X |
F01870 | Vega 1 Long Range |
F01872 | Vega 1 Short Range |
In order to update the firmware please contact TRAFFIC@tattile.com, specifying the Part Number of your camera and the version of the firmware currently uploaded on it.
