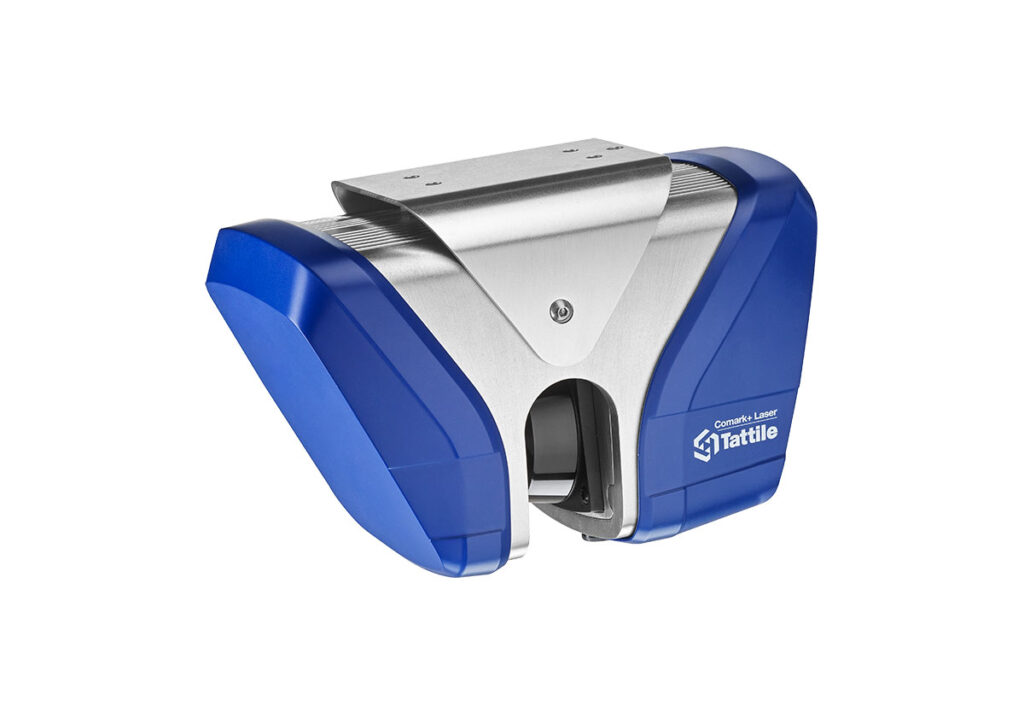

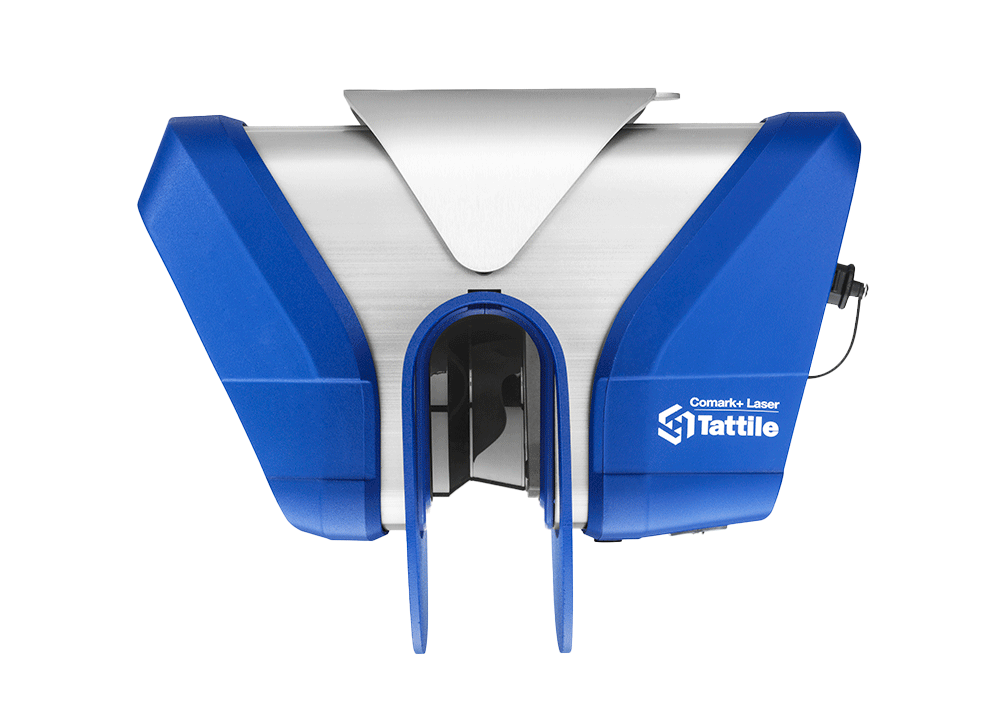

Comark+ Laser
New generation Laser "Fog proof"
- Applications: Access Control, Average Speed enforcement, Bus Lanes, Congestion charge, Free Flow Tolling, Laser and Radar Sensors, LEZ<Z, Speed Enforcement, Stop&go Tolling, Traffic Analytics, Vehicle Monitoring, WIM
Comark+ Laser is a high precision laser for analysis suitable for transit detection, trigger, classification, and precise measurement purposes. The revolutionary technology «fog-proof engine» avoids interferences in harsh weather conditions.
Compact size and all-in-one solution, no external PC required. Internal AI point cloud processing.
LTE (optional) is easily accessible.
Available with RADAR as option for 3D classification. Dual Comark+ Laser kit available (two lasers + specific bracket) for tolling applications.
As an option, it is provided with a customized length, ready-to-use cable (no connector assembly required).
Applications
- Free Flow Tolling
- Stop&Go Tolling
- WIM
- Vehicle Monitoring
- Traffic Analytics
Comark+ Laser is developed for accurate transit detection, triggering, vehicle classification, and precise measurement applications. Thanks to its innovative 210° aperture angle, it reliably detects vehicles traveling at speeds of up to 250 km/h and it covers up to two lanes simultaneously.
Its revolutionary fog-proof engine prevents interference in harsh weather, maximizing consistent performance and data reliability.
The device features a compact, all-in-one solution that requires no external PC, simplifying installation and reducing system complexity.
The laser scanner operates at 100 Hz, delivering exceptionally high detail and ensuring high accuracy and performance.
Comark+ Laser is also available with an optional radar module. The radar is used to determine the vehicle’s speed and direction, as well as its length.
Furthermore, a combination of lasers allows them to be used for different applications and to handle different types of data.
| COMARK+ LASER | |
|---|---|
| SOFTWARE FEATURES AND PERFORMANCE | |
| Software platform | Stark |
| AI accelerators | 1 hardware accelerator |
| Radar | Optional |
| Lanes | 2 |
| Max vehicle speed | 250 kmh / 155 mph |
| Transit detection | Up to 99.5% |
| Vehicle classification | TLS 8+1 |
| Raw point cloud | YES |
| AES256 | YES |
| Fog filter processor | 1 dedicated hardware |
| F02800-000 | Comark+ Laser |
In order to update the firmware, please open a ticket on the Tattile Academy platform, selecting “FW upgrade” in the request type field.
