TAG-7 SWIR Line Scan Camera
Short Wave Infrared Line Scan Camera
TAG-7 SWIR is a family of short wave infrared linescan cameras for advanced Machine Vision application in the field of non-visible spectrum. With this special feature the camera is suitable for sorting application, recycling industry, semiconductor industry.
The TAG-7 SWIR cameras features a with 1K InGaAs sensor with spectral band from 950 nm to 1700 nm with a square pixel size of 12.5 x 12.5 µm.
They are available with both GigE Vision (coming soon) and CameraLink interfaces, with a maximum speed of 40KHz.
The TAG-7 SWIR cameras have an internal FPGA that can be customized so to tailor specific requirements
TAG-7 SWIR cameras have the same compact size (only 62x62x52 mm) and a rugged and stable enclosure with C-mount lens support.
Key points
- Linear InGaAs sensors 1K resolutions
- High Speed: up to 40 KHz line rate
- GigE Vision (coming soon) and CameraLink protocols
- Internal FPGA for image pre-processing
- Compact size of 62x62x52 mm
Applications

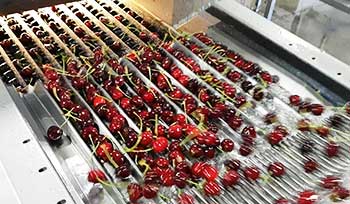

- Fresh and Dry/Seeds sorting
- Agricultural quality inspection
- Recycling industry
- Semiconductor
- Moisture Detection
- Inspectiong fill level of nontransparent containers
TAG-7 SWIR
The TAG-7 SWIR is the new-generation line scan camera platform with InGaAs sensor for special Industrial application in non-visible spectrum field. It’s available with resolution of 1K with GigE or CameraLink interface. TAG-7 SWIR runs with a frame rate up to 40 KHz.
FPGA
The TAG-7 SWIR cameras have an internal FPGA that can be customized so to tailor specific requirements.
Compact size
Its compact form allows easily integration into any machine and production line, especially for multi-camera systems.
GigE Vision (coming soon)
Thanks to GigE Vision Interface, the camera can be easily integrate into a vision system, without using a frame grabber.
CameraLink
TAG-7 SWIR CameraLink versions support configurations Base configuration with a Line Rate up to 40 KHz.
| SPECIFICATION | VALUE |
|---|---|
| Resolution | 1024 x 1 pixel |
| Type | Linear InGaAs |
| Pixel size | 12.5 x 12.5 µm |
| Spectral band | 950 nm to 1700 nm |
| Spectral response | TBC |
| Image size | 12.8 x 0.0125 mm |
| Cooling | Uncooled |
| Maximum Line Rate | 40 KHz |
| Trigger Mode | External trigger / Free run |
| Digital inputs | 3 RS422 (Only GigE version - coming soon) |
| Digital outputs | 2 RS422 (Only GigE version - coming soon) |
| Optical Mount | C-Mount |
| Interface | GigE Vision (coming soon) CameraLink |
| Power Supply | 12/24Vdc |
| Power consumption | TBD |
| Operating Temperature | 0°C-50°C |
| Dimension (W x H x L) | 62 (W) x 62 (H) x 51.8 (L) |
| IP Grade | IP40 |
| Conformity | 2004/30/EU EN 61326-1:2013 EN 62311:2008 RoHS |
